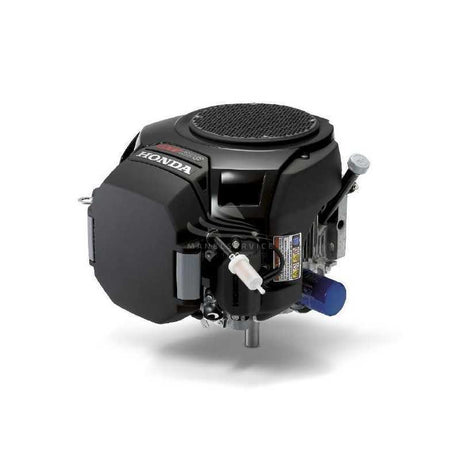

HONDA GXV630-QYF4-Shaft 25.4mm (20.8 HP)

1.500,00 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Engine with electric starter

For detailed specifications, please click below to visit the 'Honda engines' website homepage and click on the 'products/engines' section:


https://www.honda-engines-eu.com/fr

Supplied without key or bolt

Specifications

Detailed technical specifications
Shaft dimensions 25.4 x 80 mm (1")
Orientation Vertical
Rotation direction Antihoraire (vers la gauche)
Reduction Sans
Net power 15.5 kW ( 20.8 CV ) @ 3600 tr/min
Displacement (cm3) 688
Starting Electrique
Dry weight 46,5 kg

Identification

Brand Honda
Model GXV630
Manufacturer type code QYF4
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Bicylindre
Bore × stroke (mm) 2 x 78 x 72
Displacement (cm3) 688
Compression ratio 9.3 : 1
Lubrication Sous pression, avec filtre a huile

Performance

Net power 15.5 kW ( 20.8 CV ) @ 3600 tr/min
Continuous power 10.5 kW ( 14.1 CV ) @ 3000 tr/min
Torque 48.3 Nm ( 4.93 kgfm ) @ 2500 tr/min
Speed control Variable (avec point de fixation pour câble d'accélérateur)
Fuel consumption 5.0 L/h @ 3000 tr/min

Starting and charging

Starting Electrique
Charging coil Charge 17A
Oil level alert Alerte de pression d'huile
Exhaust Non

Shaft and coupling

Orientation Vertical
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions 25.4 x 80 mm (1")
Key (mm) 6.3 x 6.3
Shaft bolt 3/8-24 UNF (pas américain)
Reduction Sans

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Oui (en ligne)
Air cleaner Double élément (mousse + papier)
Choke Manuel (commande a distance)

Capacities

Fuel tank (L) Sans
Engine oil (L) 1.9
Dry weight 46,5 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Livré sans clavette ou boulon d'arbre

GXV630 Spare Parts

View all
Pieces détachées GXV630

Check for compatibility

The spare parts offered here correspond to this range or brand of engines. As the same engine can exist in several versions, please ensure before ordering that the part corresponds to your exact model. If in doubt, do not hesitate to contact us.
