HONDA GXV160 A1N5

520,00 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

With blade brake

Supplied without key or bolt

Specifications

Detailed technical specifications
Shaft dimensions Étagé 25.4 puis 22.2 mm (voir plan)
Orientation Vertical
Rotation direction Antihoraire (vers la gauche)
Reduction Sans
Net power 3.2 kW ( 4.3 CV ) @ 3600 tr/min
Displacement (cm3) 163
Starting Lanceur
Dry weight 15,5 kg

Identification

Brand Honda
Model GXV160
Manufacturer type code A1N5
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 68 x 45
Displacement (cm3) 163
Compression ratio 8.0 : 1
Lubrication Barbotage

Performance

Net power 3.2 kW ( 4.3 CV ) @ 3600 tr/min
Continuous power 2.0 kW ( 2.7 CV ) @ 3000 tr/min
Torque 9.6 Nm ( 0.98 kgfm ) @ 2500 tr/min
Speed control Variable (avec point de fixation pour câble d'accélérateur)
Fuel consumption 1.1 L/h @ 3000 tr/min

Starting and charging

Starting Lanceur
Charging coil Non
Oil level alert Non
Exhaust Oui

Shaft and coupling

Orientation Vertical
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions Étagé 25.4 puis 22.2 mm (voir plan)
Key (mm) Sans
Shaft bolt 3/8-24 UNF (pas américain)
Reduction Sans

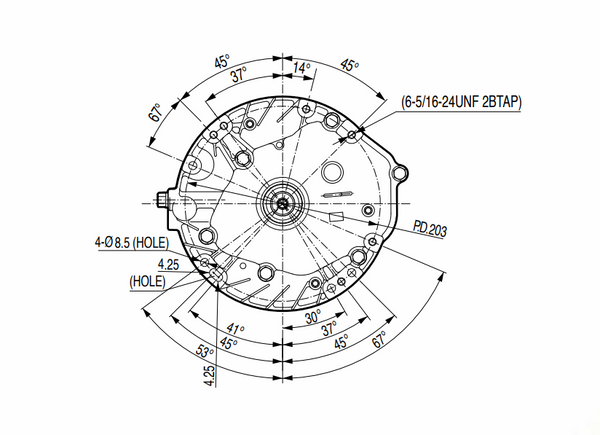

Mounting hole spacing Mounting hole spacing

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Vissé dans le reservoir
Air cleaner Double élément (mousse + papier)
Choke Manuel (commande a distance)

Capacities

Fuel tank (L) 1.40
Engine oil (L) 0.65
Dry weight 15,5 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Avec frein de lame, avec volant alu Livré sans clavette ou boulon d'arbre
