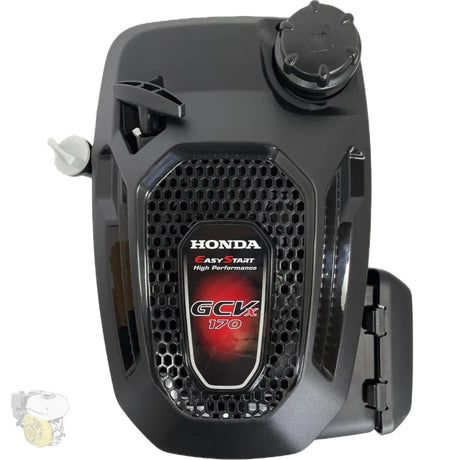

Honda GCV170-N2EW shaft 22.2mm x 63mm (4.8HP)

388,50 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Supplied without key or bolt

  • without blade brake
  • with heavy steering wheel
  • shaft 22.2mm x 63mm

Specifications

Detailed technical specifications
Shaft dimensions 22,2 × 63 mm
Orientation Vertical
Rotation direction Antihoraire (vers la gauche)
Reduction Sans
Net power 3.6 kW ( 4.8 CV ) @ 3600 tr/min
Displacement (cm3) 166
Starting Lanceur
Dry weight 10,1 kg

Identification

Brand Honda
Model GCV170
Manufacturer type code N2EW
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 60 × 59
Displacement (cm3) 166
Compression ratio 8.0 : 1
Lubrication Barbotage

Performance

Net power 3.6 kW ( 4.8 CV ) @ 3600 tr/min
Continuous power 2.4 kW ( 3.2 CV ) @ 3000 tr/min
Torque 11.1 Nm ( 1.13 kgfm ) @ 2500 tr/min
Speed control Variable (avec point de fixation pour câble d'accélérateur)
Fuel consumption 1.2 L/h @ 3600 tr/min

Starting and charging

Starting Lanceur
Charging coil Non
Oil level alert Non
Exhaust Oui

Shaft and coupling

Orientation Vertical
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions 22,2 × 63 mm
Key (mm) 4.7 x 4.7
Shaft bolt 3/8-24 UNF (pas américain)
Reduction Sans
Mounting hole spacing Mounting hole spacing

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Vissé dans le reservoir
Air cleaner Standard (papier simple)
Choke Manuel (commande a distance)

Capacities

Fuel tank (L) 0.91
Engine oil (L) 0.4
Dry weight 10,1 kg

Other information

Warranty 3 mois fabricant (professionnel)
2 ans fabricant (particulier)
2 ans garantie légale (particulier uniquement)
Accessories Déflecteur gaz
Notes Sans frein de lame, avec volant lourd Livré sans clavette ou boulon d'arbre
