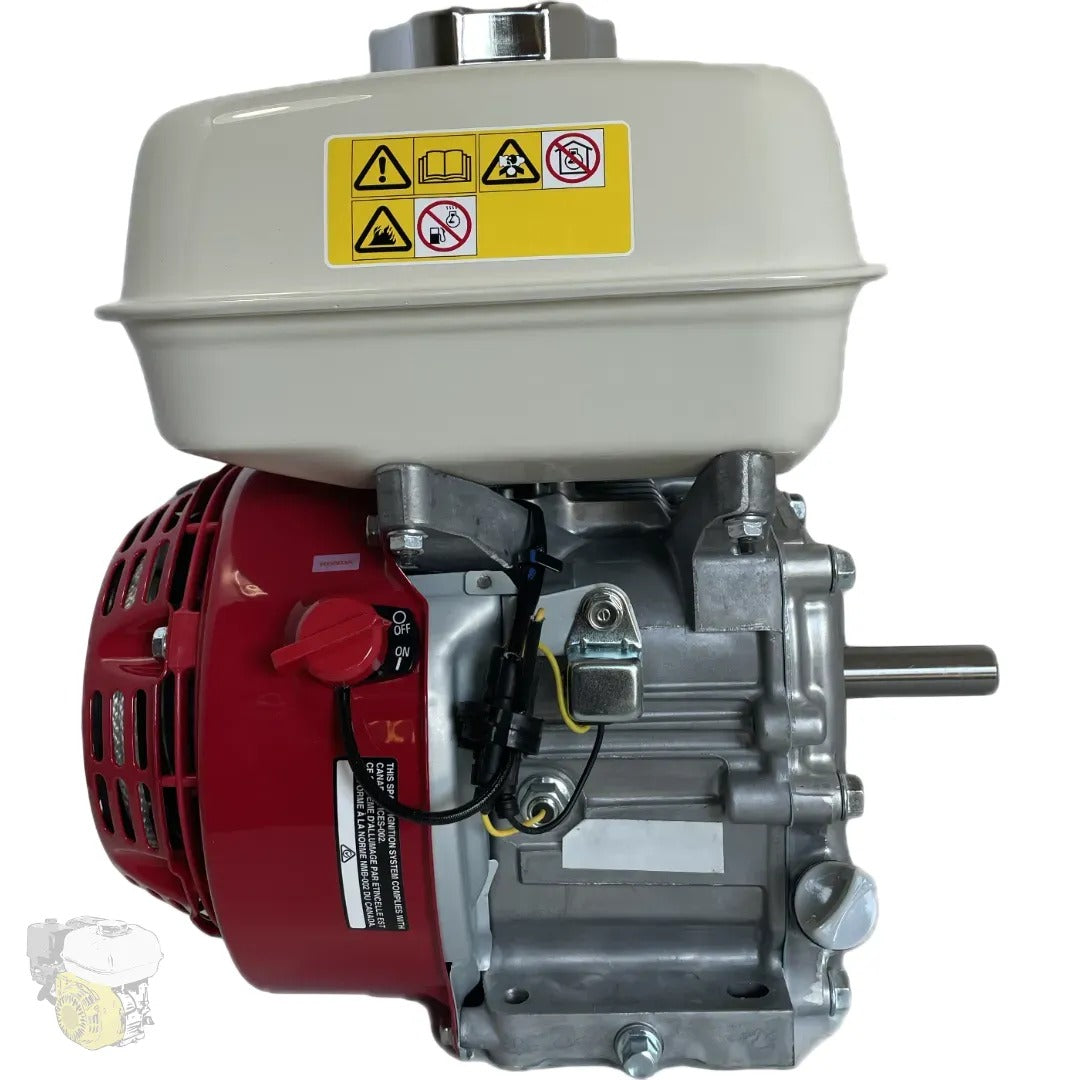

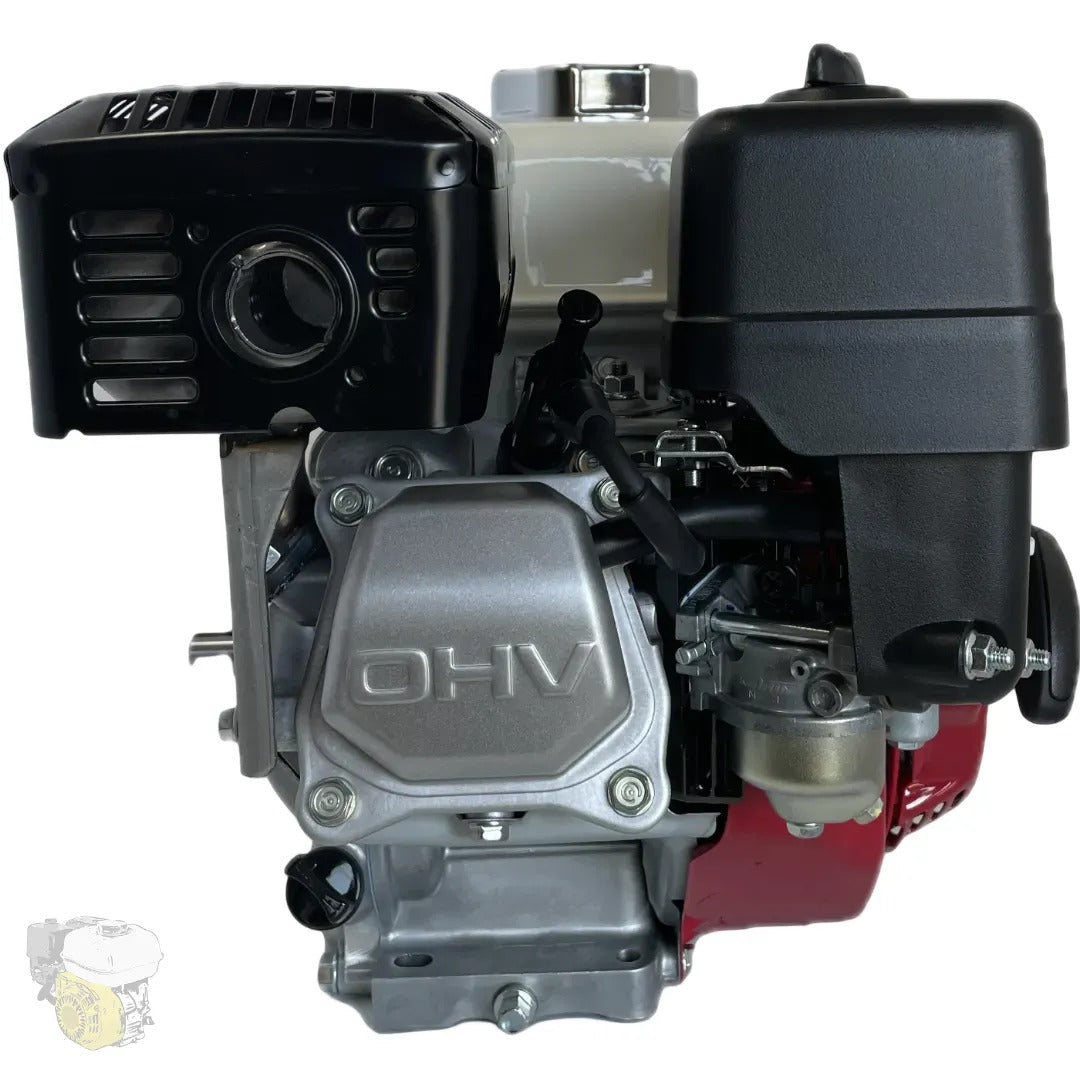

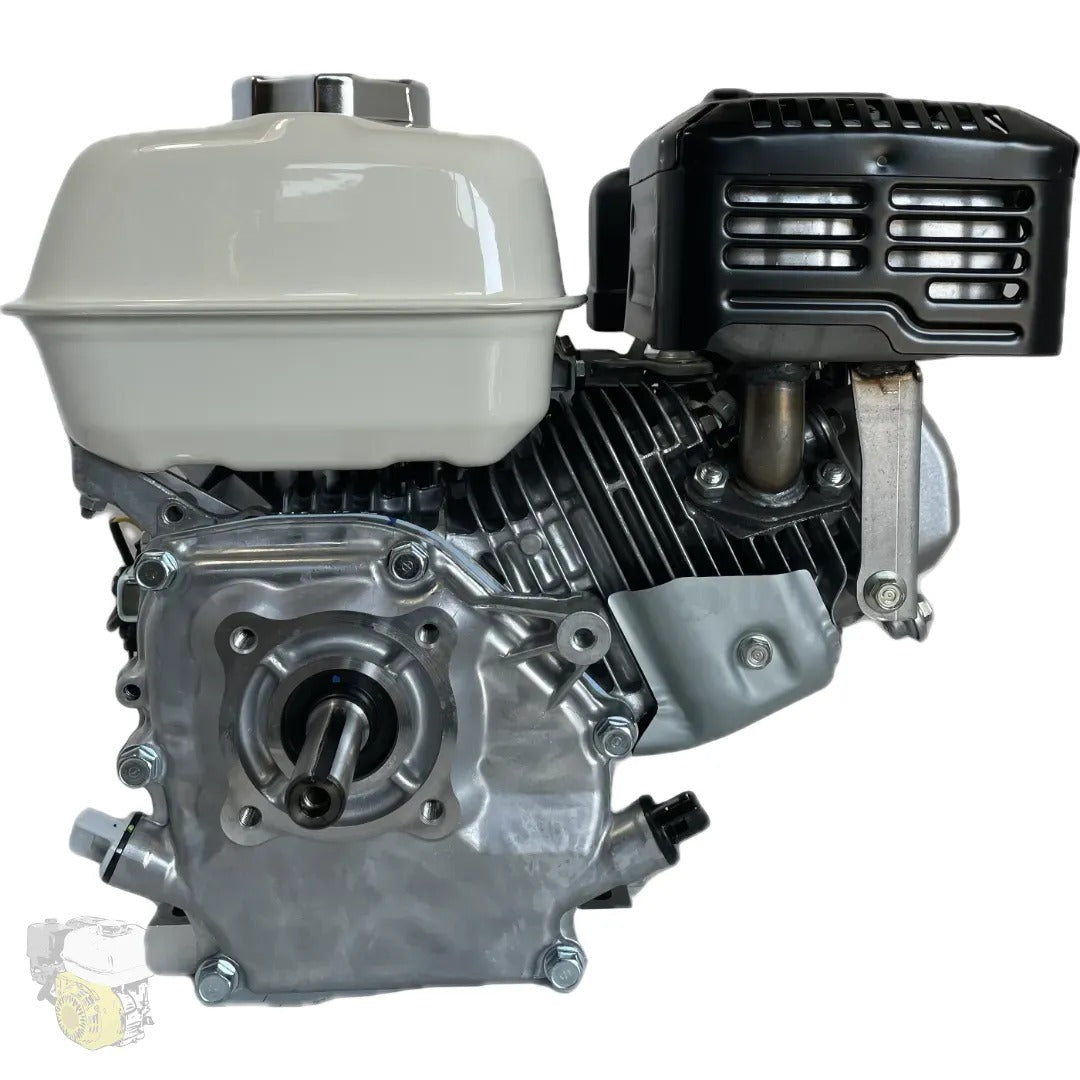

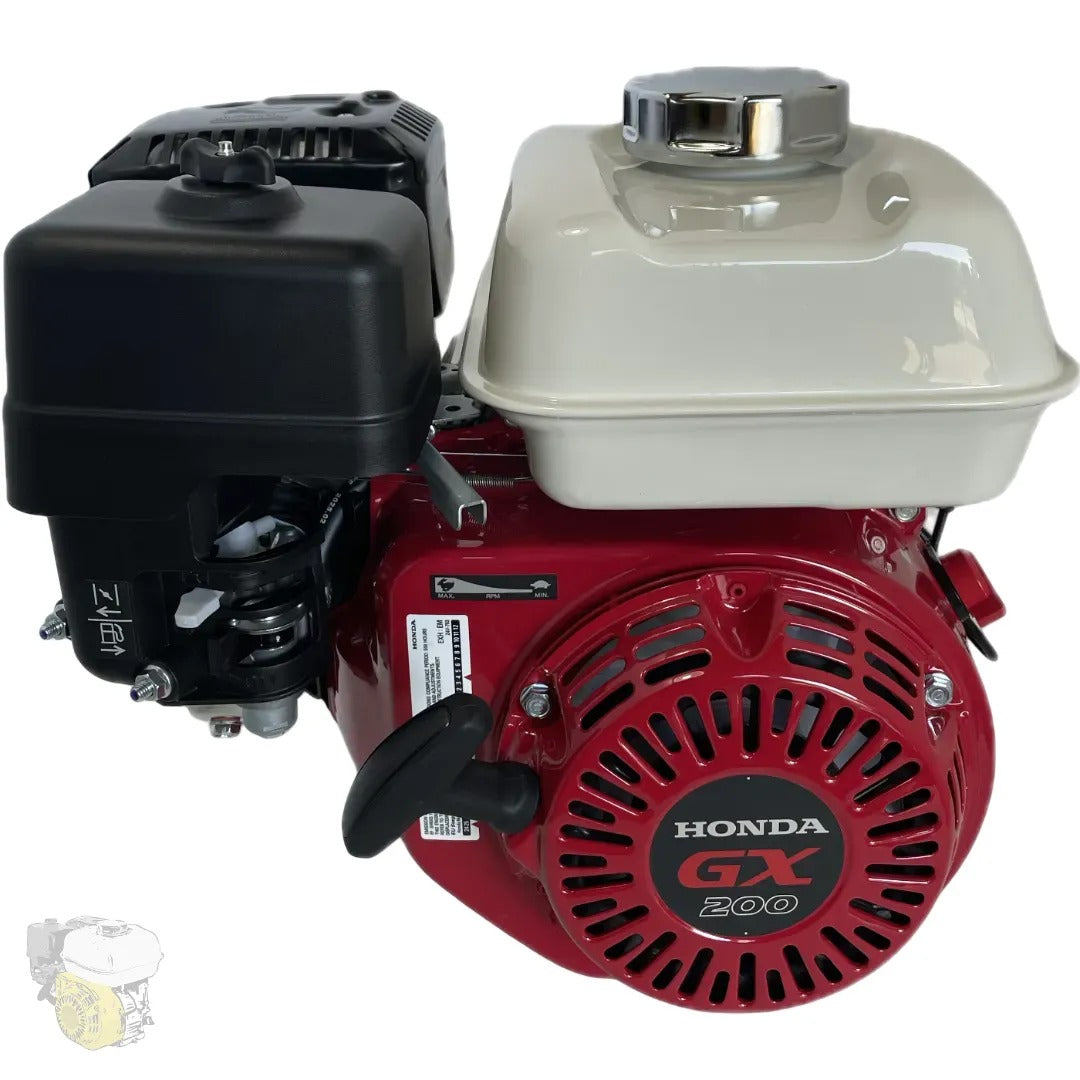

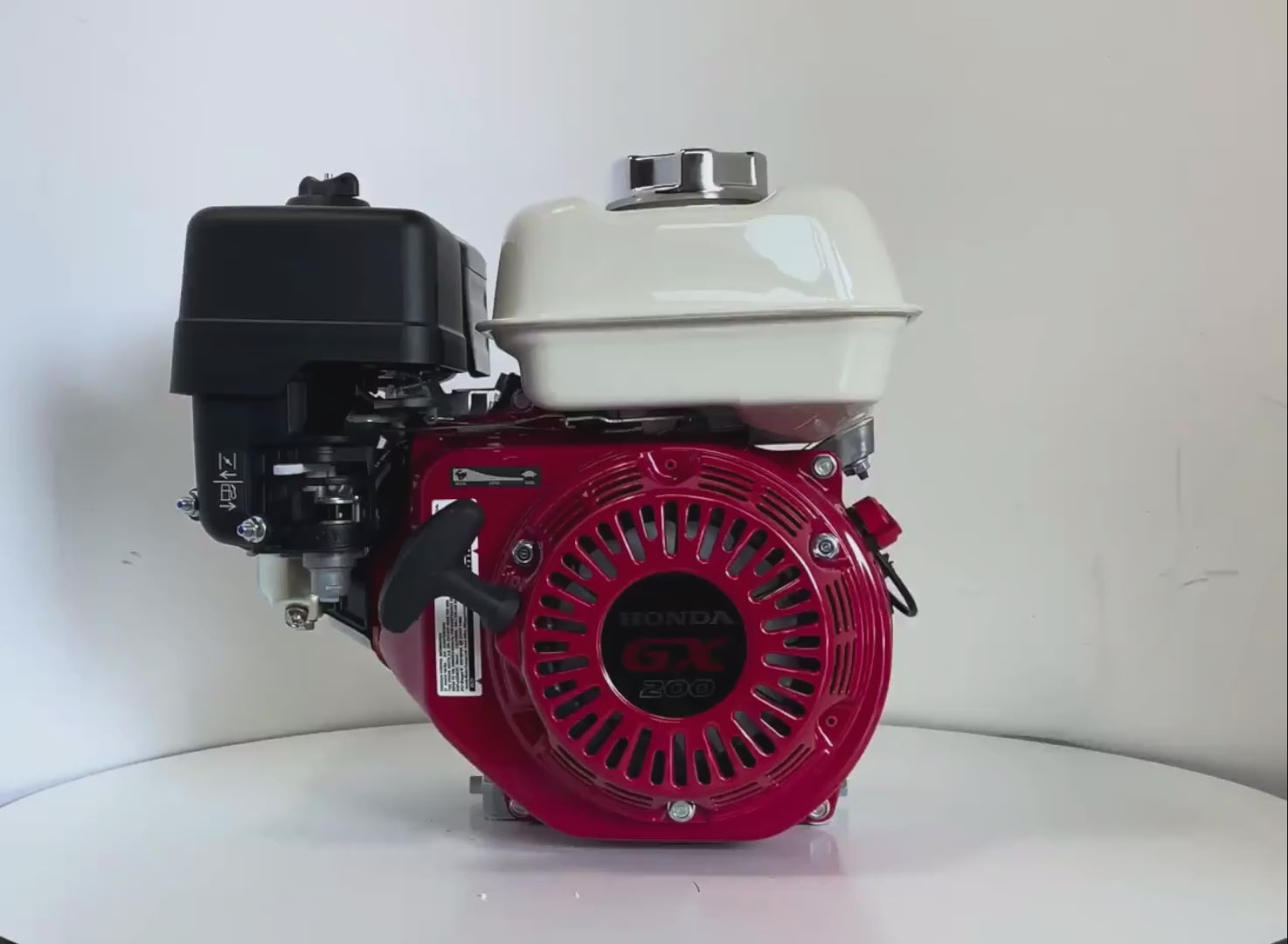

HONDA GX200 QX4 - (19.05mm / 3/4" x 58.5mm Shaft) with oil alert

525,00 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Honda GX200QX4 - (Shaft 19.05mm x 58.5mm) with low oil alert

For detailed specifications, please click below to visit the Honda Engines homepage and click on the 'products/engines' section:

https://www.honda-engines-eu.com/fr

The Honda GX200 5.5 hp net power overhead valve engine is a commercial series with a horizontal shaft, electronic ignition, and automatic decompression. Its applications include: air compressors, generators, pumps, pressure washers, cement finishers, and construction equipment. *Previously rated at 6.5 hp. Reduced by the global Industrial Engine unification program

- Electronic ignition and automatic decompressor for quick and easy starts.
- Oil drain/fill on both sides of the engine for different applications.
- Large muffler, low noise level.
- 2-year European warranty.

Specifications

Detailed technical specifications
Shaft dimensions 19.05 x 58.5 mm (3/4")
Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Reduction Sans
Net power 4.3 kW ( 5.8 CV ) @ 3600 tr/min
Displacement (cm3) 196
Starting Lanceur (électrique disponible en option)
Dry weight 16,1 kg

Identification

Brand Honda
Model GX200
Manufacturer type code QX4
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 68 x 54
Displacement (cm3) 196
Compression ratio 8.5 : 1
Lubrication Barbotage

Performance

Net power 4.3 kW ( 5.8 CV ) @ 3600 tr/min
Continuous power 3.7 kW ( 5.0 CV ) @ 3600 tr/min
Torque 12.4 Nm ( 1.26 kgfm ) @ 2500 tr/min
Speed control Variable
Fuel consumption 1.7 L/h @ 3600 tr/min

Starting and charging

Starting Lanceur (électrique disponible en option)
Charging coil Non
Oil level alert Oui
Exhaust Oui

Shaft and coupling

Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions 19.05 x 58.5 mm (3/4")
Key (mm) 4.7 x 4.7
Shaft bolt 5/16-24 UNF (pas américain)
Reduction Sans

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Vissé dans le reservoir
Air cleaner Double élément (mousse + papier)
Choke Manuel

Capacities

Fuel tank (L) 3.10
Engine oil (L) 0.6
Dry weight 16,1 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Livré sans clavette ou boulon d'arbre
