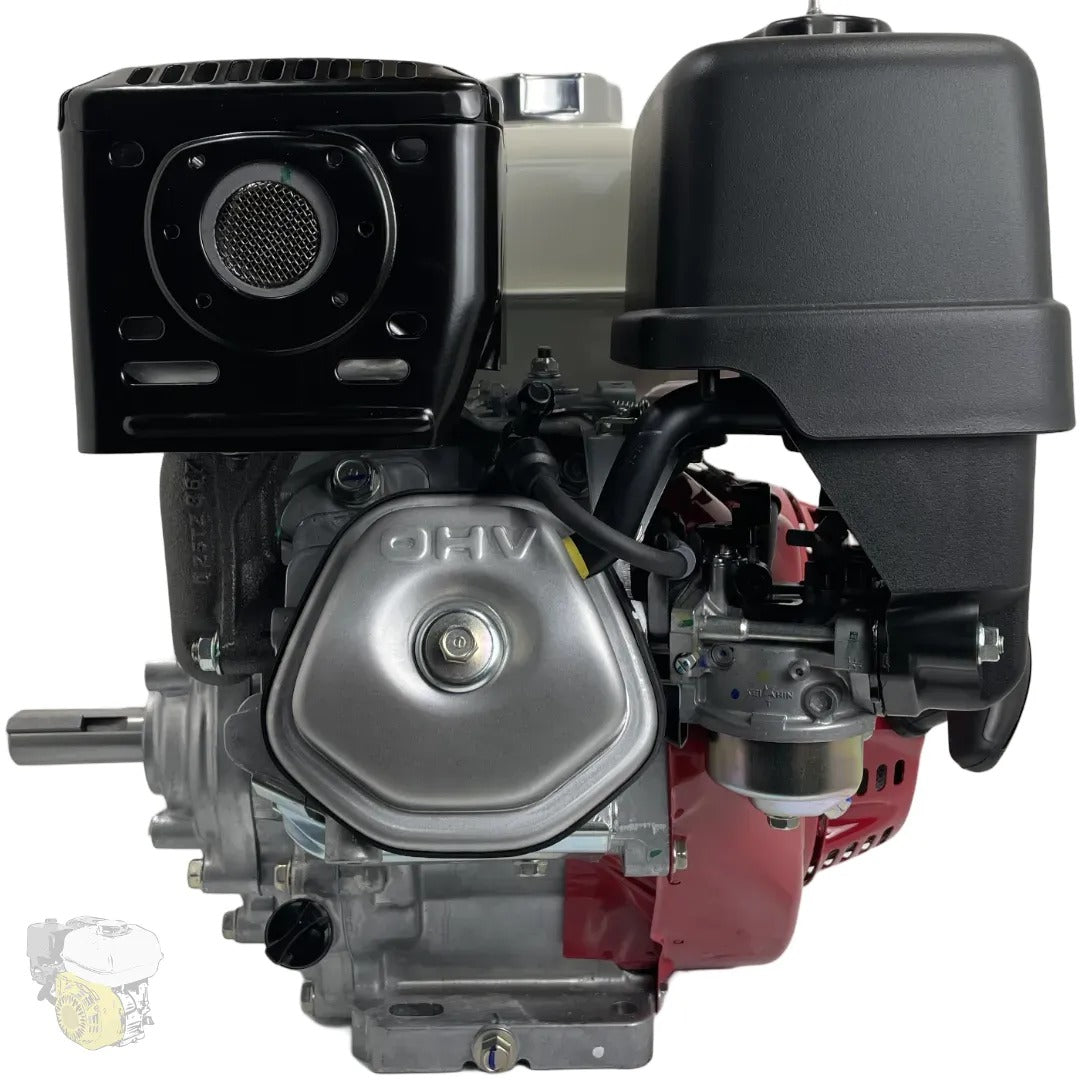

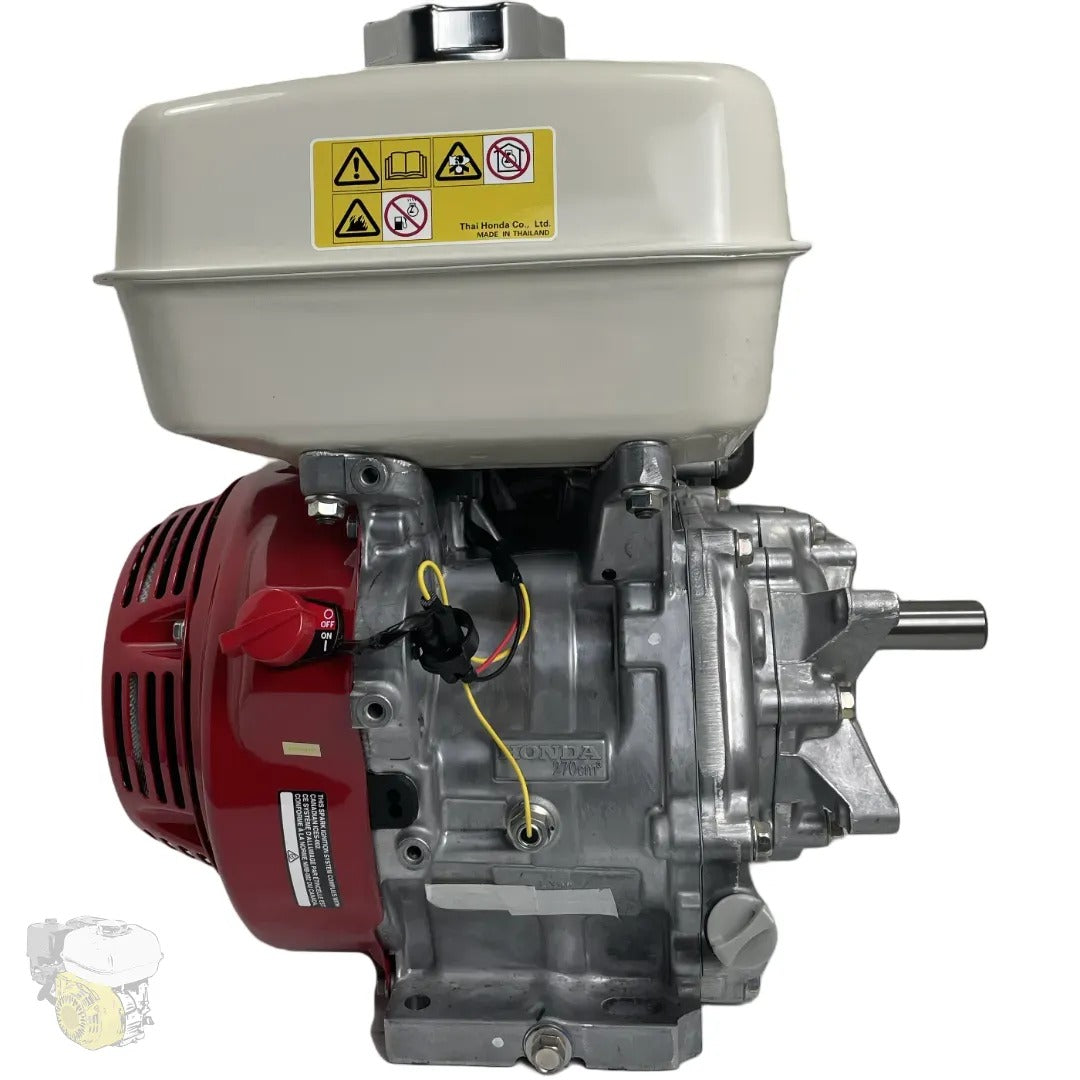

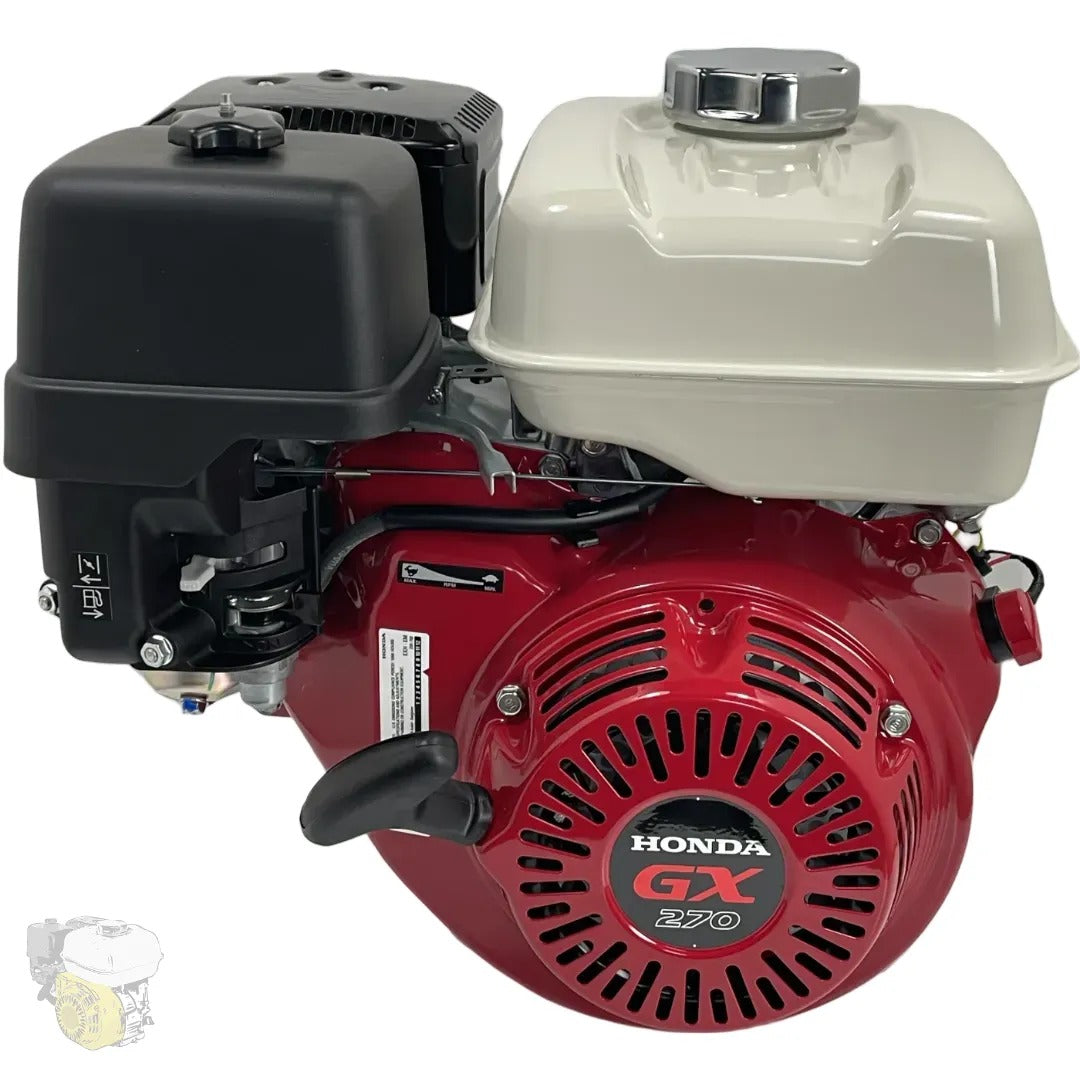

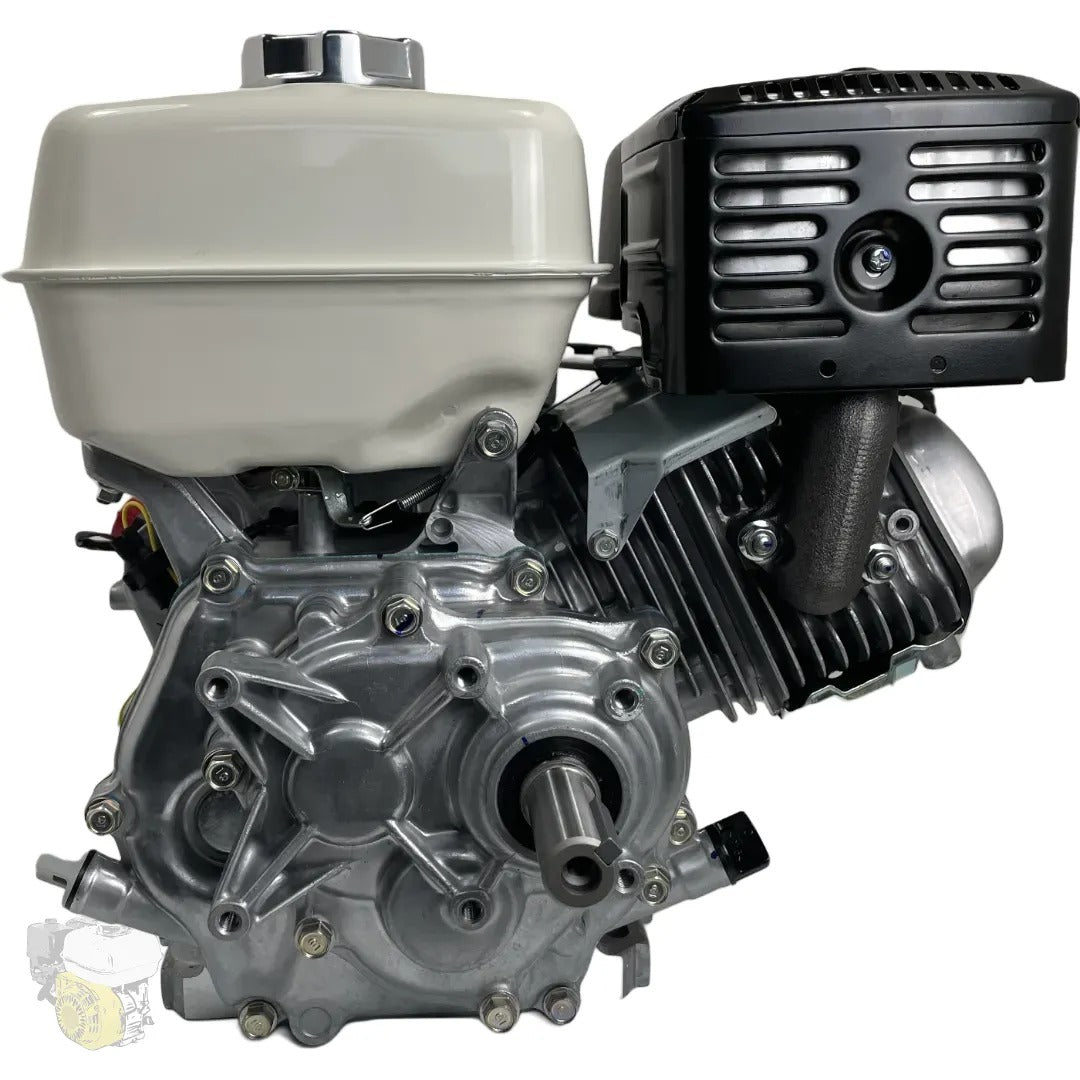

HONDA GX270 LXQ4 - (25mm shaft) with 1/2 reduction and oil level alert

1.039,50 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Shaft = S - 25mm,

Oil alert = Yes

Reduction gear = Yes - Half - 1800 rpm

Clutch = No,

Start = Recoil starter

For detailed specifications, please click below to visit the 'Honda Engines' website homepage and click on the 'products/engines' section:

https://www.honda-engines-eu.com/fr

However, if you have another version, such as:

VKE4 - VKX4 - VPE4 - VPE5 - VPX4 - VPX5 - VPX9 - VS37 - VS39 - VWT4 - QBE1 - QHB1 - VSP - SWS4 - HXQ4 - LXQ4 - QA2 - QA4 - QAQ4 - QE - QHB4 - QHQ4 - QKE4 - QME2 - QWA4 - QXB7 - QXB9 - QXC4 - QXC9 - QXCU - QXE4 - QXQ4 - RHE4 - RHG4 - RHQ4 - RXQ4 - SHQ4 - SMC4 - SME1 - SME6 - SWA4 - SWC4 - SXB7 - SXB9 - SXE4 - SXQ4 - VKQ4 - VMA4 - VME4 - VN17 - VSD7 - VSD9 - VSH7 - VWA2 - VXB7 - VXB9 - VXE7 - VXE9 - VXQ4 ... PLEASE contact us to check the availability of the version or the closest replacement version.

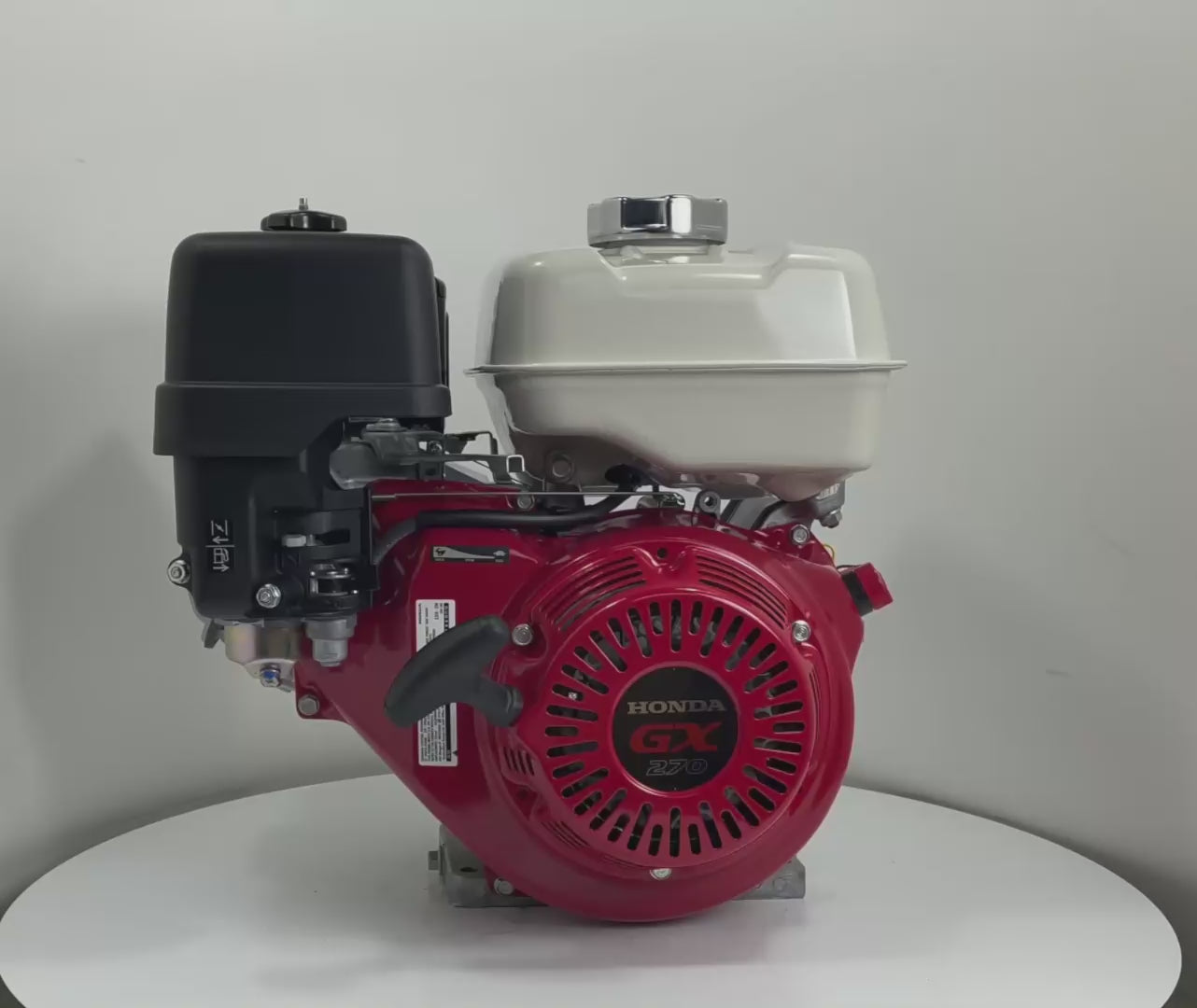

The Honda GX270 engine, 8.4 hp net power, overhead valve, commercial series with horizontal shaft, electronic ignition and automatic decompressor. Its applications include: air compressors, generators, pumps, pressure washer-sprayers, concrete finishers and construction equipment. *Previously rated at 9 hp. Reduced by the global unification program for Industrial Engines.

- Electronic ignition and automatic decompressor for quick and easy starts.
- Oil drain/fill on both sides of the engine for different applications.
- Large muffler, low noise level.
- 3-year European warranty.

Delivered without key or bolt

Specifications

Detailed technical specifications
Shaft dimensions 25 x 60 mm
Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Reduction 1/2 (interne au moteur)
Net power 6.3 kW ( 8.4 CV ) @ 3600 tr/min
Displacement (cm3) 270
Starting Lanceur
Dry weight 25,8 kg

Identification

Brand Honda
Model GX270
Manufacturer type code LXQ4
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 77 × 58
Displacement (cm3) 270
Compression ratio 8.5 : 1
Lubrication Barbotage

Performance

Net power 6.3 kW ( 8.4 CV ) @ 3600 tr/min
Continuous power 5.1 kW ( 6.8 CV ) @ 3600 tr/min
Torque 19.1 Nm ( 1.94 kgfm ) @ 2500 tr/min
Speed control Variable
Fuel consumption 2.4 L/h @ 3600 tr/min

Starting and charging

Starting Lanceur
Charging coil Non
Oil level alert Oui
Exhaust Oui

Shaft and coupling

Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions 25 x 60 mm
Key (mm) 7 x 7
Shaft bolt M8 x 1.25
Reduction 1/2 (interne au moteur)

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Vissé dans le reservoir
Air cleaner Double élément (mousse + papier)
Choke Manuel

Capacities

Fuel tank (L) 5.3
Engine oil (L) 1.1
Dry weight 25,8 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Livré sans clavette ou boulon d'arbre Réducteur 1/2 intégré : 1 800 tr/min en sortie d'arbre.

GX270 spare parts

View all
Pièces détachées GX270

Check for compatibility

The spare parts offered here correspond to this range or brand of engines. As the same engine can exist in several versions, please ensure before ordering that the part corresponds to your exact model. If in doubt, do not hesitate to contact us.
