HONDA GX100 KRE4 15mm stepped shaft (2.8 HP)

651,00 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Engine supplied without key or bolt

Shaft= 15mm

Carburetor = Diaphragm,

Oil level alert = No

Specifications

Detailed technical specifications
Shaft dimensions Étagé 15 mm
Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Reduction Sans
Net power 2.1 kW ( 2.8 CV ) @ 3600 tr/min
Displacement (cm3) 98
Starting Lanceur
Dry weight 10,5 kg

Identification

Brand Honda
Model GX100
Manufacturer type code KRE4
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 56 x 40
Displacement (cm3) 98
Compression ratio 8.5 : 1
Lubrication Barbotage

Performance

Net power 2.1 kW ( 2.8 CV ) @ 3600 tr/min
Continuous power 1.7 kW ( 2.3 CV ) @ 3600 tr/min
Torque 5.7 Nm ( 0.58 kgfm ) @ 3600 tr/min
Speed control Variable (avec point de fixation pour câble d'accélérateur)
Fuel consumption 0.88 L/h @ 3600 tr/min

Starting and charging

Starting Lanceur
Charging coil Non
Oil level alert Non
Exhaust Oui

Shaft and coupling

Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)

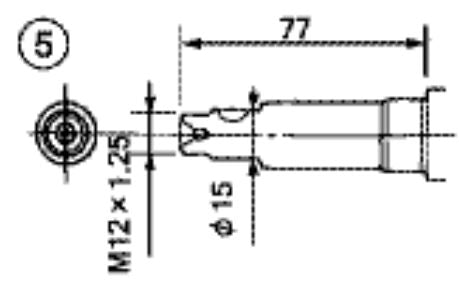

Shaft dimensions Étagé 15 mm
Key (mm) Sans
Shaft bolt Ecrou Ext M12 x 1.25
Reduction Sans
Mounting hole spacing Mounting hole spacing

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Non
Air cleaner Double élément (mousse + papier)
Choke Manuel

Capacities

Fuel tank (L) Sans
Engine oil (L) 0.4
Dry weight 10,5 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Livré sans clavette ni boulon d'arbre Monté le plus souvent sur pilonneuse Carburateur a membrane Bride pilonneuse 60 kg
