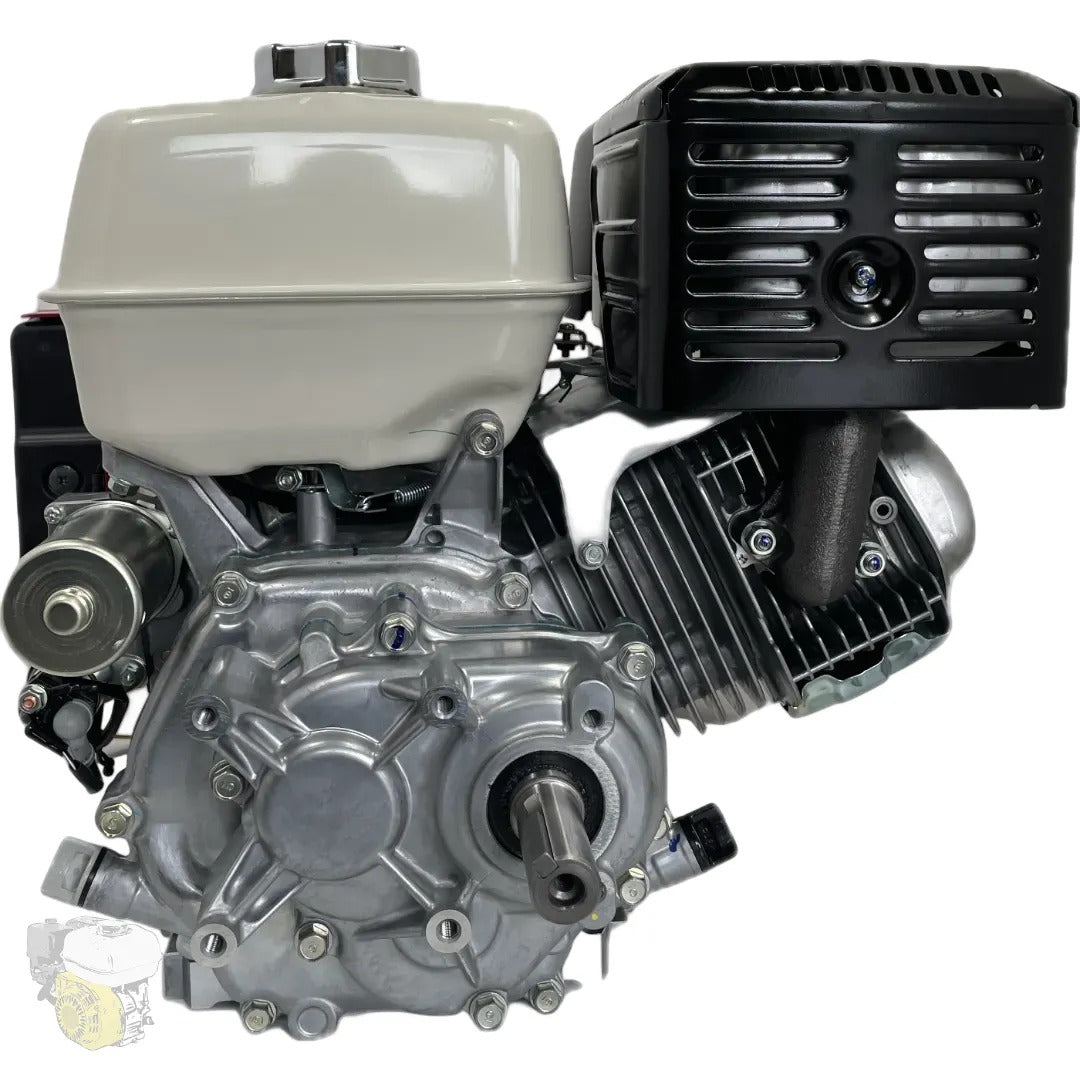

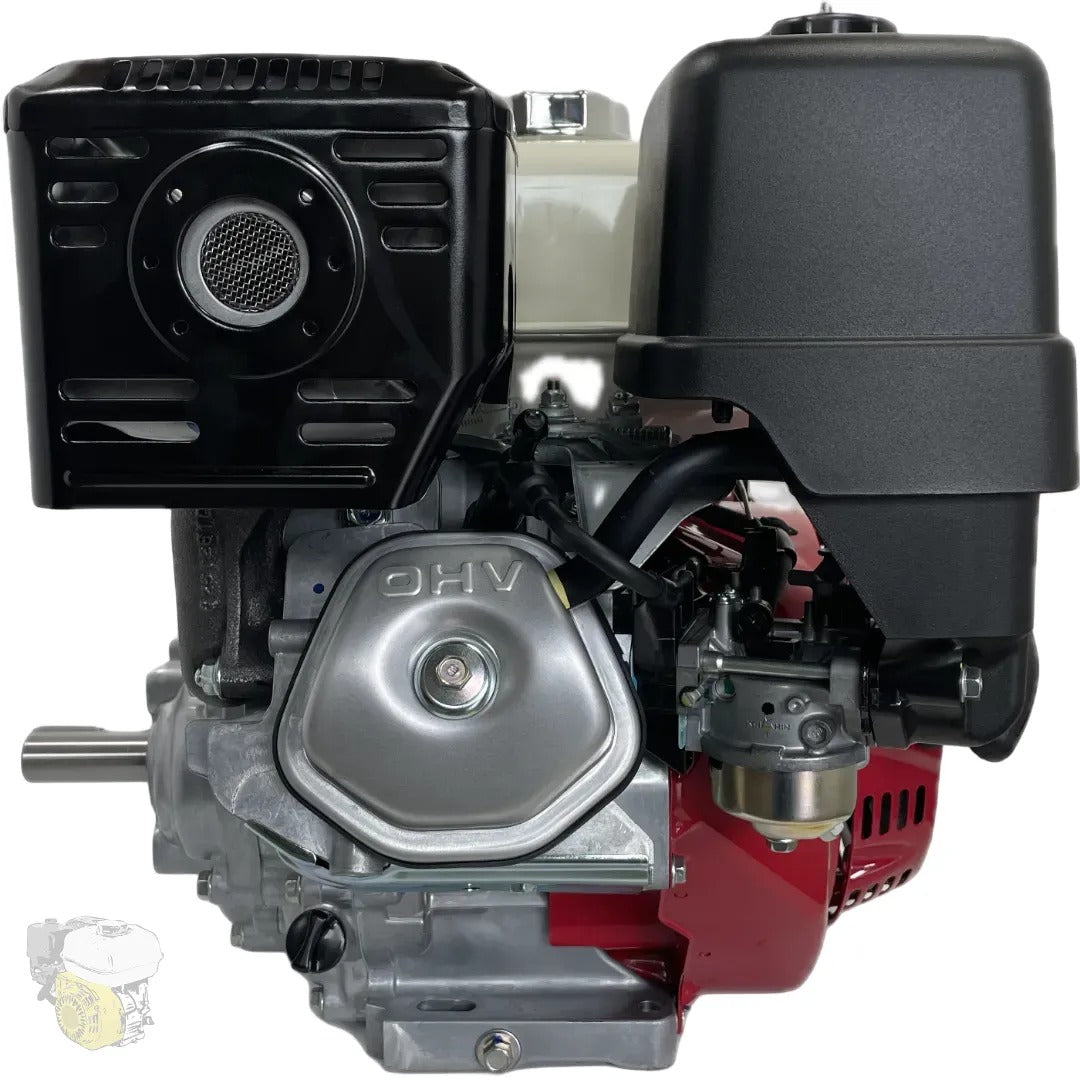

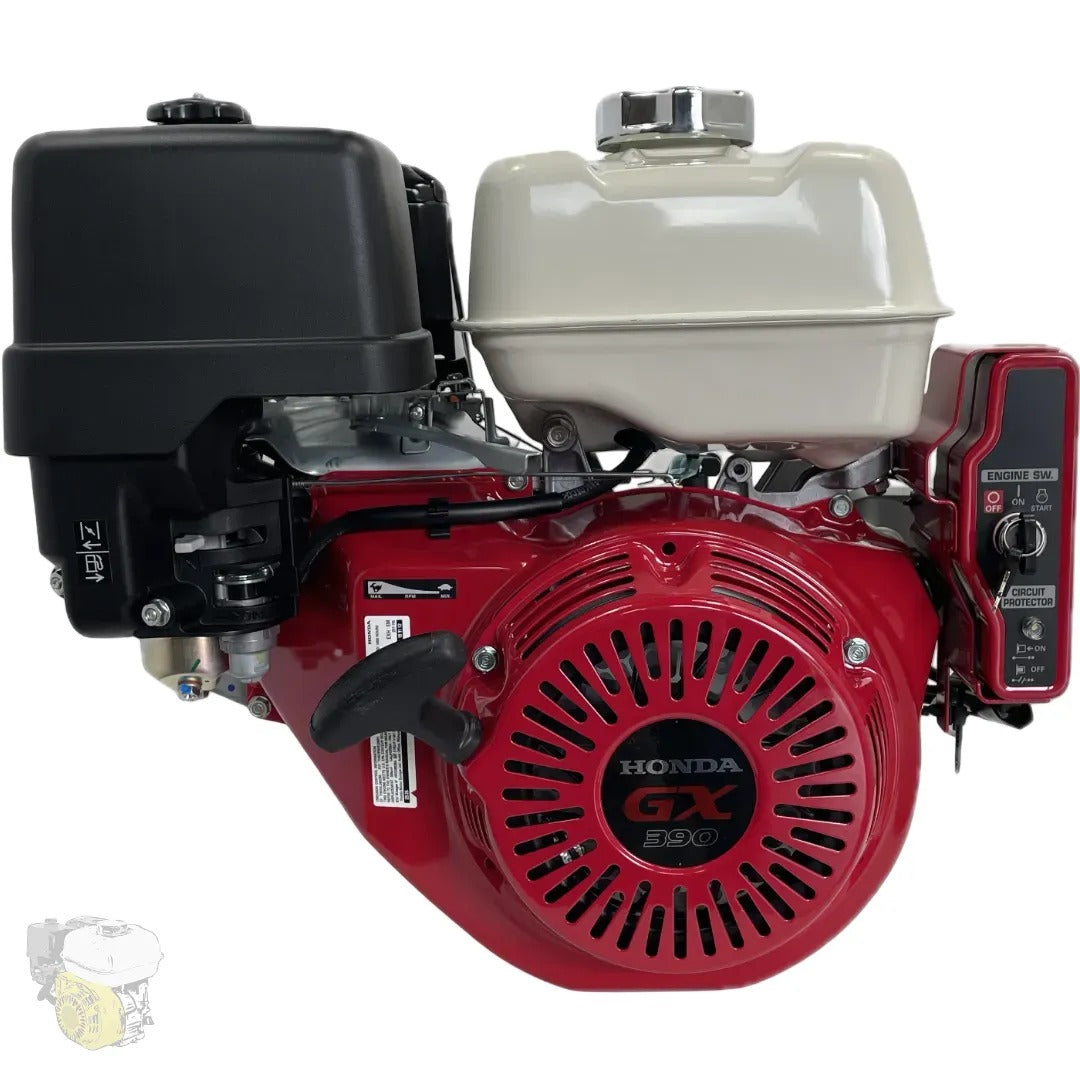

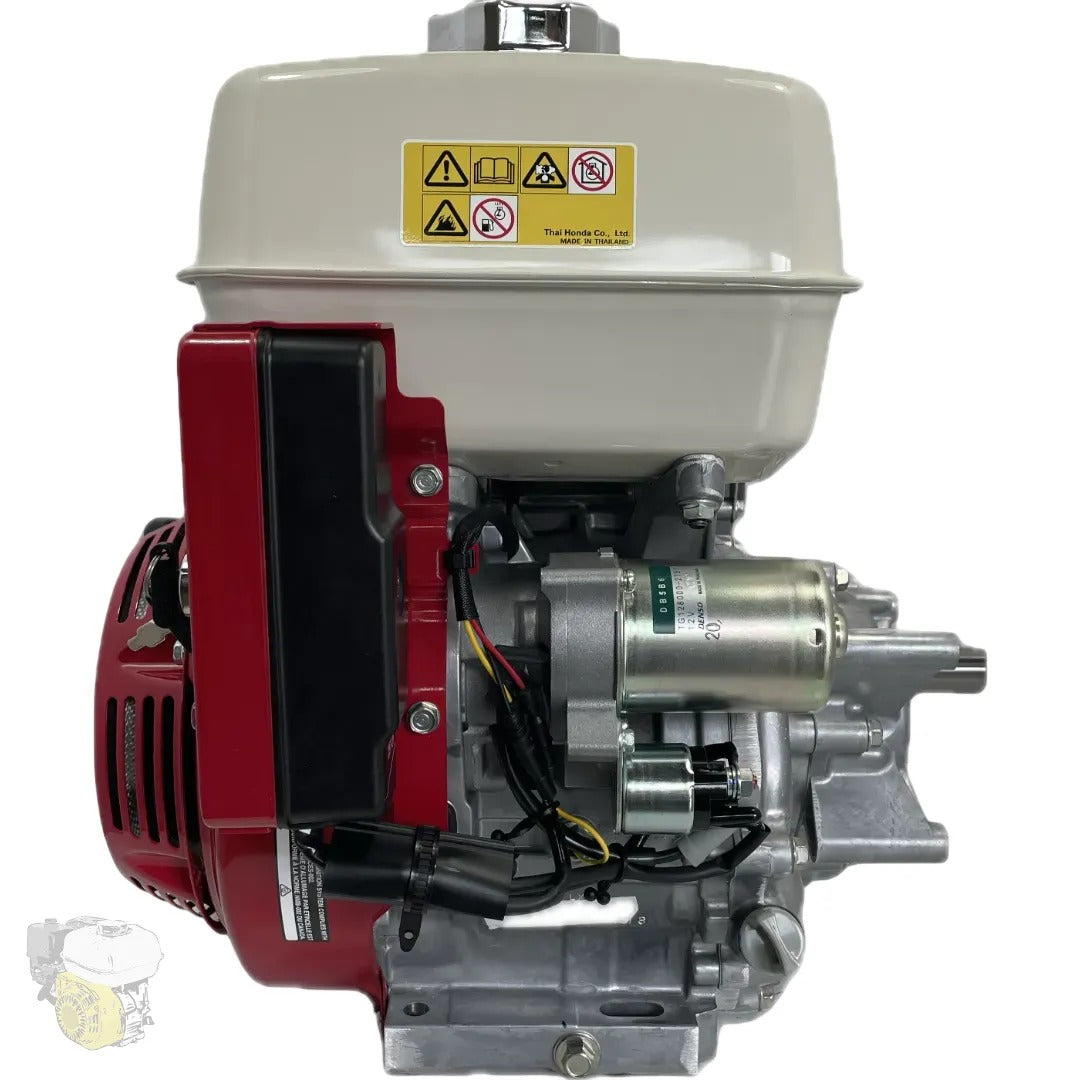

HONDA GX390 LXE4 - (25mm shaft) with 1/2 reduction, electric start and oil level warning

1.595,00 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Tree = L - 25mm

Oil level alert = Yes

Gearbox = Yes - Half - 1800 rpm

Clutch = No,

Starting = Starter

For detailed specifications, please click below to visit the 'Honda engines' website homepage and click on the 'products/engines' section:

https://www.honda-engines-eu.com/fr

However, if you have another version, such as:

VCN2 - VEP9 - VKE4 - VKX4 - VPE5 - VPE9 - VPX4 - VPX9 - VS49 - VSD4 -.VTH4 - VWT4 - QBE1 - QHB1 - QX - VSP - VX - VXE - QAE2 - QNE2 - LKE - LXE4 - LXQ4 - QA2 - QA4 - QE - QHB4 - QK4 - QKA4 - QME0 - QWA4 - QWC4 - QXB7 - QXB9 - QXC4 - QXC9 - QXCU - QXE4 - QXE7 - QXE9 - QXH9 - QXQ4 - QXS4 - SCK4 - SHQ4 - SM32 - SM34 - SMC1 - SMD3 - SME0- SME6 - SNC - STC4 - SWA4 - SXB7 - SXB9 - SXE4 - SXQ4 - VN27 - VNG1 - VSD7 - VSD9 - VXB7 - VXB9 - VXE7 - VXE9 ... PLEASE contact us to check the availability of the version or the closest replacement version.

Engines for use in karting, other forms of competition, or recreational vehicles have a limited warranty. Any engine that is modified to exceed its speed limit is done at your own risk. If you have any questions, please contact us for more details or see our terms and conditions.

Supplied without key or bolt

Specifications

Detailed technical specifications
Shaft dimensions 25 x 60 mm
Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Reduction 1/2 (interne au moteur)
Net power 8.7 kW ( 11.7 CV ) @ 3600 tr/min
Displacement (cm3) 389
Starting Lanceur et électrique
Dry weight 31,7 kg

Identification

Brand Honda
Model GX390
Manufacturer type code LXE4
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 88 × 64
Displacement (cm3) 389
Compression ratio 8,2 : 1
Lubrication Barbotage

Performance

Net power 8.7 kW ( 11.7 CV ) @ 3600 tr/min
Continuous power 7.0 kW ( 9.4 CV ) @ 3600 tr/min
Torque 26.5 Nm ( 2.70 kgfm ) @ 2500 tr/min
Speed control Variable
Fuel consumption 3.5 L/h @ 3600 tr/min

Starting and charging

Starting Lanceur et électrique
Charging coil Charge 1A
Oil level alert Oui
Exhaust Oui

Shaft and coupling

Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions 25 x 60 mm
Key (mm) 7 x 7
Shaft bolt M8 x 1.25
Reduction 1/2 (interne au moteur)

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Vissé dans le reservoir
Air cleaner Double élément (mousse + papier)
Choke Manuel

Capacities

Fuel tank (L) 6.1
Engine oil (L) 1.1
Dry weight 31,7 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Livré sans clavette ou boulon d'arbre
