HONDA GX160- SHQ4 - (Shaft 20mm x 50mm) no oil alert

349,00 €
Tax included
Pièce d'origine garantie

Best price guarantee

Did you find this motor cheaper in France? Contact us.

We will offer it to you at the same price.

Conditions:

  • Exact same reference (make, model, and variant)
  • Public price including VAT, shipping costs included, from a French reseller
  • Equivalent purchase conditions and availability (e.g., in stock for immediate delivery)

Description

Type SHQ4 - (Shaft 20mm x 50mm) without oil level alert

For detailed specifications, please click below to visit the "Honda Engines" website homepage and click on the "products/engines" section:

https://www.honda-engines-eu.com/fr

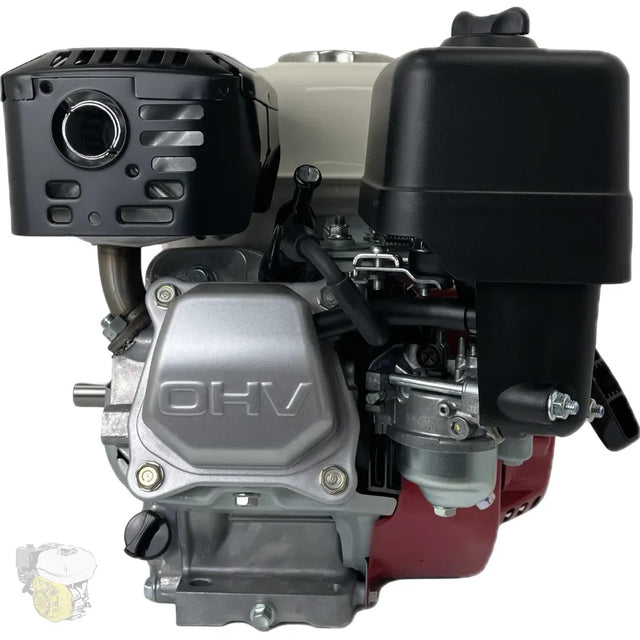

The Honda GX160 engine has 4.8 net hp with overhead valves, commercial series with horizontal shaft, electronic ignition and automatic decompressor. Its applications include: air compressors, generators, pumps, pressure washer-cleaners, concrete finishers and construction equipment. *Previously rated at 5.5 hp. Reduced by the global unification program of the Industrial Engine.

- Electronic ignition and automatic decompressor for quick and easy starts.
- Oil drain/fill on both sides of the engine for different applications.
- Large muffler, low noise level.
- 3-year European warranty.

VSP - RHG4 - SWG4 - QHB1- QMP1 - QX - QXC9 - QXE4 - QXW - SXE4 - VS17 - HHQ4 - HX4 - LHQ4 - LX4 - QAX2 - QAX4 - QBC2 - QHG4 - QHQ4 - GKA4 - QMC6 - QMC8 - QMD6 - QME4 - QMP4 - QNT4 - QPU - QWA4 - QX4 - QX7 - QX9 - QXE5 - QXWE - RHQ4 - RX4 - SG24 - SHQ4 - SMC7 - SMC9 - SX4 - SX7 - SX9 - SXE5 - SXE4 - TX4 - VG24 - VG29 - VGE4 - VGE5 - VPM5 - VPR4 - VS19 - VSD9 - VXE9 - WMB0

Delivered without key or bolt

Specifications

Detailed technical specifications
Shaft dimensions 20 x 50 mm
Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Reduction Sans
Net power 3.6 kW ( 4.8 CV ) @ 3600 tr/min
Displacement (cm3) 163
Starting Lanceur
Dry weight 15,1 kg

Identification

Brand Honda
Model GX160
Manufacturer type code SHQ4
Manufacturing Origine

Engine

Engine type 4 temps OHV
Cylinders Monocylindre
Bore × stroke (mm) 68 x 45
Displacement (cm3) 163
Compression ratio 9.0 : 1
Lubrication Barbotage

Performance

Net power 3.6 kW ( 4.8 CV ) @ 3600 tr/min
Continuous power 2.9 kW ( 3.9 CV ) @ 3600 tr/min
Torque 10.3 Nm ( 1.05 kgfm ) @ 2500 tr/min
Speed control Variable
Fuel consumption 1.4 L/h @ 3600 tr/min

Starting and charging

Starting Lanceur
Charging coil Non
Oil level alert Non
Exhaust Oui

Shaft and coupling

Orientation Horizontal
Rotation direction Antihoraire (vers la gauche)
Shaft dimensions 20 x 50 mm
Key (mm) 5 x 5
Shaft bolt M8 x 1.25
Reduction Sans

Fuel system

Fuel SP98 ou SP95-E5
Fuel filter Vissé dans le reservoir
Air cleaner Double élément (mousse + papier)
Choke Manuel

Capacities

Fuel tank (L) 3.10
Engine oil (L) 0.6
Dry weight 15,1 kg

Other information

Warranty 3 ans fabricant
2 ans garantie légale (particulier uniquement)
Notes Livré sans clavette ou boulon d'arbre
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonyme
Moteur bien adapté au motoculteur honda f610 il

Moteur bien adapté au motoculteur honda f610 il faut juste recuperer le pot d echapement le boitier filtreà air et le systeme d accelerateur et c est parti

GX160 spare parts

View all
Pièces détachées GX160

Check for compatibility

The spare parts offered here correspond to this range or brand of engines. As the same engine can exist in several versions, please ensure before ordering that the part corresponds to your exact model. If in doubt, do not hesitate to contact us.
